5 gallon PET bottle
HODMETER

HODMETER supplies packaging for 5-gallon water bottle business (Home & Office Delivery):


  • MonoCap cap (55 mm « non-spill » cap)
  • Preform to blow 5-gallon refillable PET bottle (refPET bottle)
  • System to produce 5-gallon bottle


  • Setup support to blow bottles
  • Accessories for HOD business

HODMETER features clear, straightforward business rules to ensure:


  • Transparent, fair and dynamic pricing
  • Quality products with reliable shipping dates based on standard production lead times
  • Direct and easy order process primarily via e-mail


To learn more about order management consult the HODMETER’S BUSINESS RULES SUMMARY. Refer to our SALES TERMS AND CONDITIONS for any interpretation.

STOP LOSSES!

MonoCap

‍Leakages are critical for HOD business. A dripping bottle creates extra costs and customer losses. MonoCap is perfect closure to stop it.

‍

‍The MonoCap 2CE conception brings great benefits:

‍

  • Non-spill system with a cost-effective design
  • A bi-injected seal for top tightness and optimum hygiene
  • A sealed plastic label (no glue or metal coating)

‍

‍Implement the MonoCap cap does not need extra investment for capping and uncapping operations, the bottler works easily with this model. The specific design of the non-spill system improves the bottle and cooler’s spike interaction and avoids the floating valve issue. All caps are checked during production for shape and leakage, and U.V. sterilized avoiding human intervention before packing. All MonoCap components are recyclable together depending on local recycling method.

‍

‍MonoCap is patented and injected by Viki Plast in accordance with HACCP and ISO 9001:2000. MonoCap is food compatible in accordance with the last European legislation.

‍

‍To test your samples or visit our production lines, please contact us by e-mail Envelope or WhatsApp What's App.

55 mm cap
5 gallon non spill cap
Viki Plast logo

PET bottles are

BPA free

‍refillable ♻

‍recyclable ♳

‍phthalate free

‍available with handle

‍from 10-litre to 5-gallon

‍

‍PET bottles (or refPET bottles) have a good durability and a great impact resistance. The bottles are available with a handle and can be customized. The injected neck brings a high tightness. Our PET preforms bring higher outstanding clarity with no stress cracking.

‍

‍Our RSBM program helps bottlers to produce bottles from 10-litre to 5-gallon when and where they need them. The refPET bottles are cost-effective, including production and logistic.

‍

‍To test your samples or visit a production line, please contact us by e-mail Envelope or WhatsApp What's App.

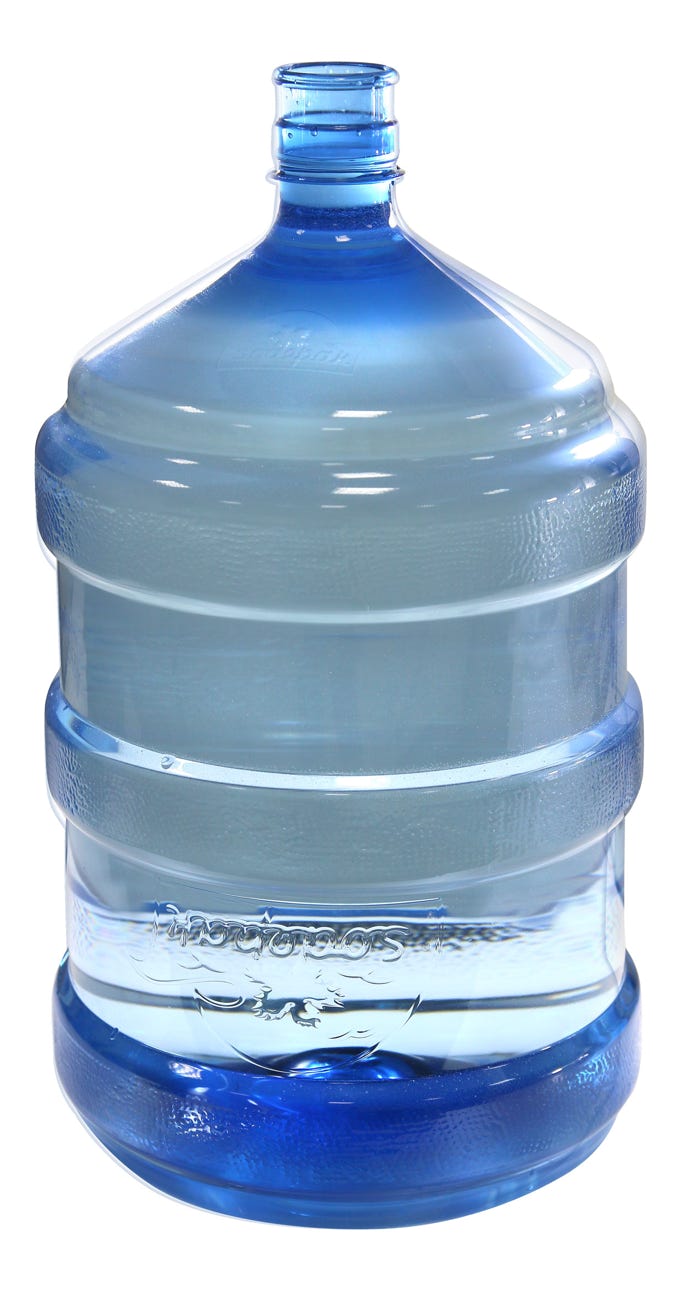

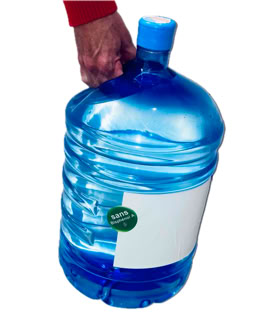

5 gallon PET bottle

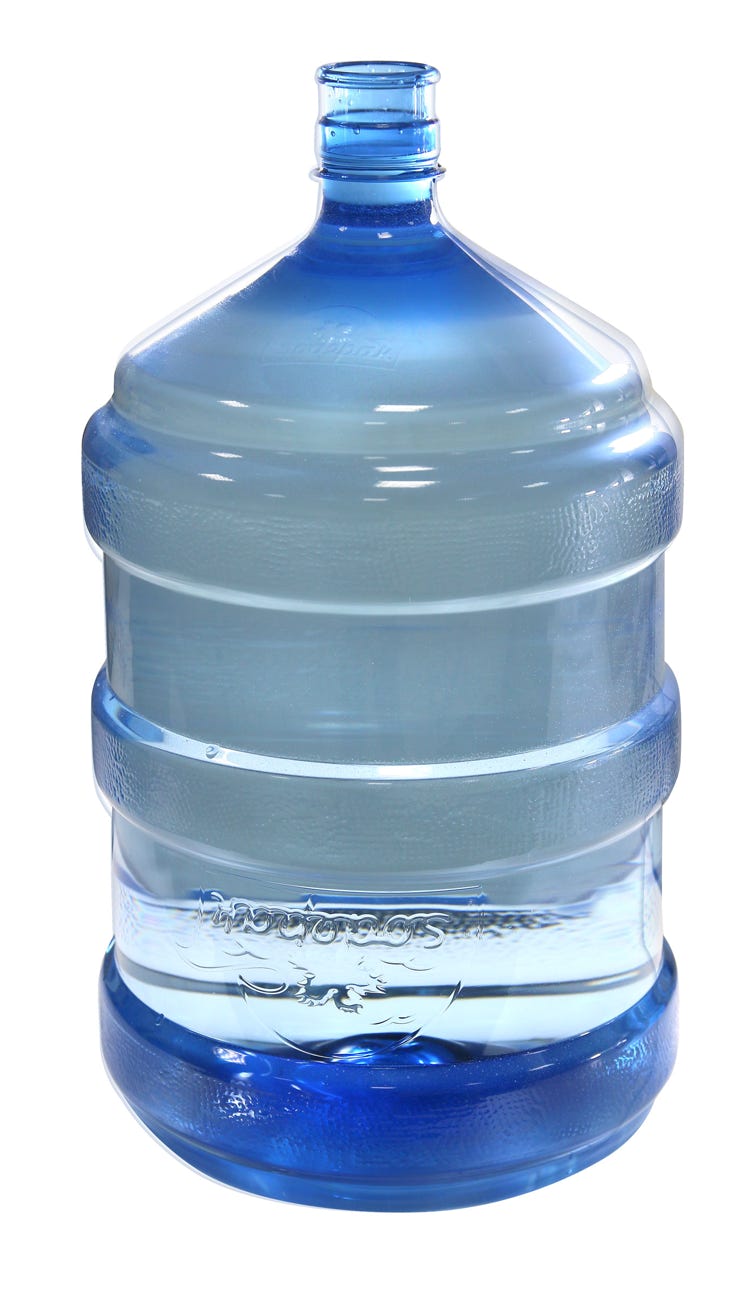

PET 18,9 litre 5 gallon bottle

‍PET preform to

‍blow-mould your bottle

‍Our PET preform is injected to blow refillable bottle
from 10-litre to 5-gallon.

‍

‍Its specific design brings the best biaxial orientation with the best planar stretch ratio for a 5-gallon bottle. The bottle is stronger with our preform than others... even heavier! The specific PET grade includes a high intrinsic viscosity with no regrind. Those two elements are crucial to blow the best bottle with high transparency and a low acetaldehyde level.

‍

‍The neck dimension is compatible with all 55 mm cap. The preform is also available with an optional neck ring for handling on automatic blowing line.

‍

‍Our preform (and handle) is injected in Europe under ISO 9001:2015 and food compatible in accordance with the last European legislation, including the traceability of materials.

‍

‍To test your samples or visit a production line, please contact us by e-mail Envelope or WhatsApp What's App.

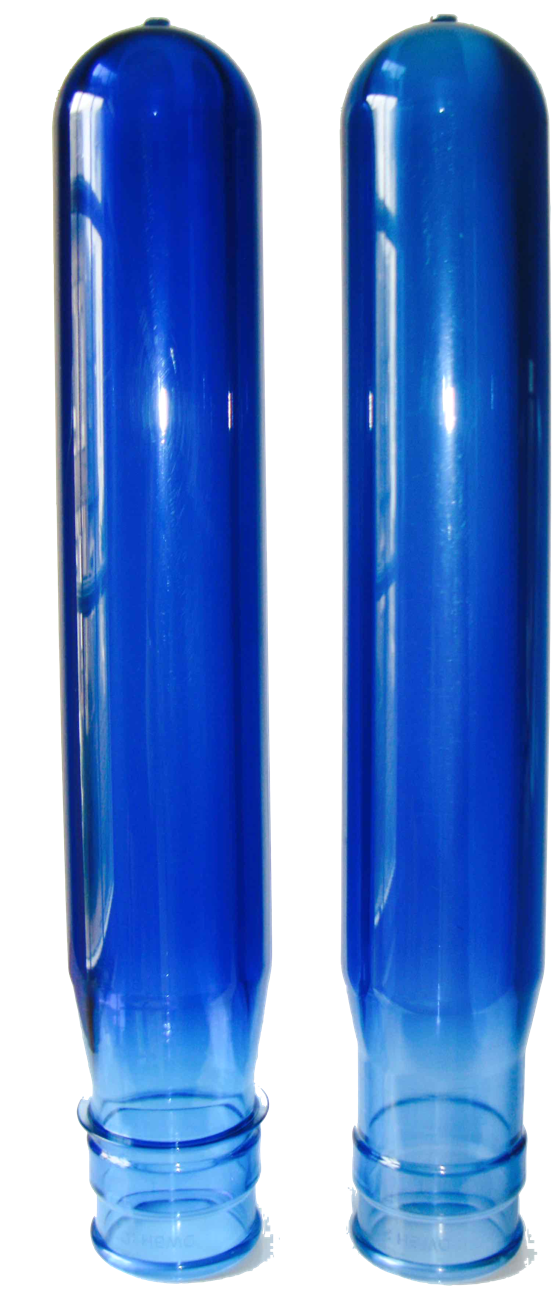

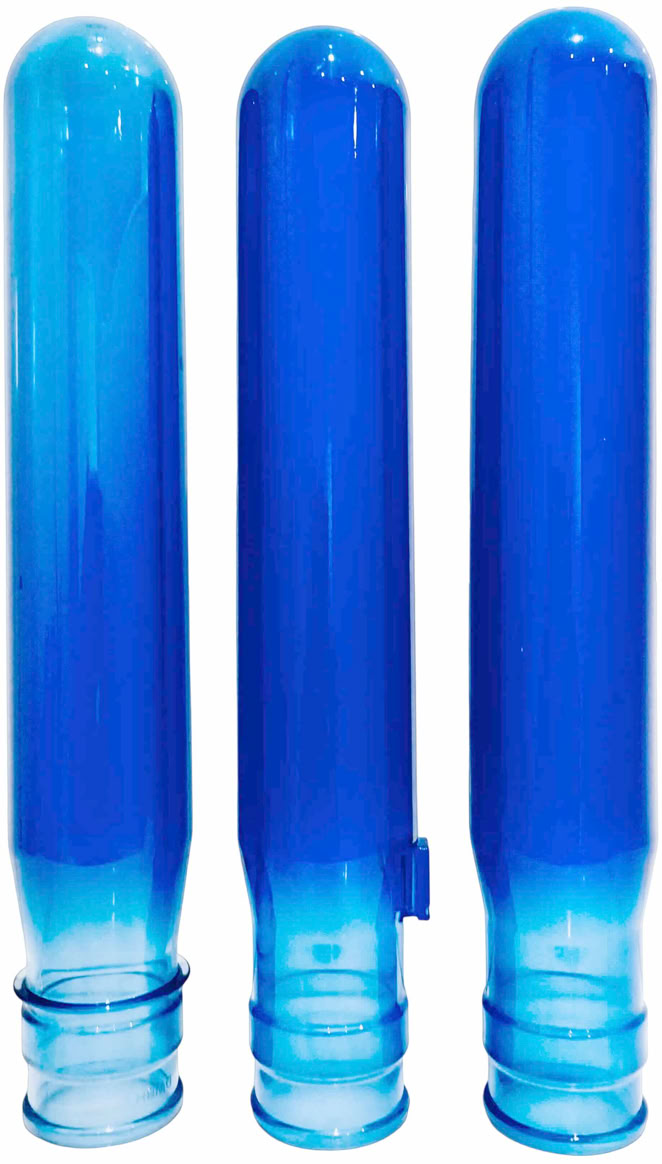

Preform PET 700 g

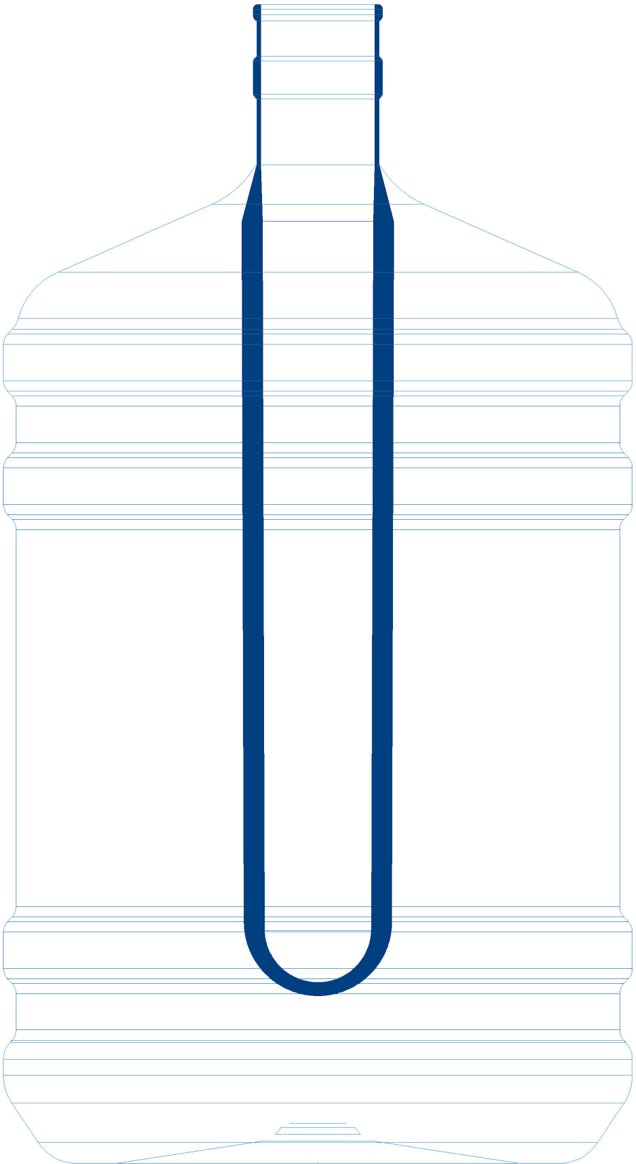

RSBM: from preform
                        to your bottle

Our RSBM support includes production line and training, the preform and handle supply; allows bottlers to blow bottles on demand.


This system is cost-effective:

  • Easy to operate: the preforms are simply reheated and stretched-blowed in bottles from 10-litre to 5-gallon with an optional side handle
  • A semi-automatic line is a basic investment with easy maintenance for a single operator
  • Output is about 60-90 bottles per hour for a semi-automatic line up to 400 bottles per hour for automatic line
  • Preform logistic is efficient (30’240 preforms loaded in a 40 foots ISO container vs 2100 bottles)

‍HODMETER assists bottlers to adapt the washing process to PET, trains the operator on their production line and shares experience (design, economics…).

‍

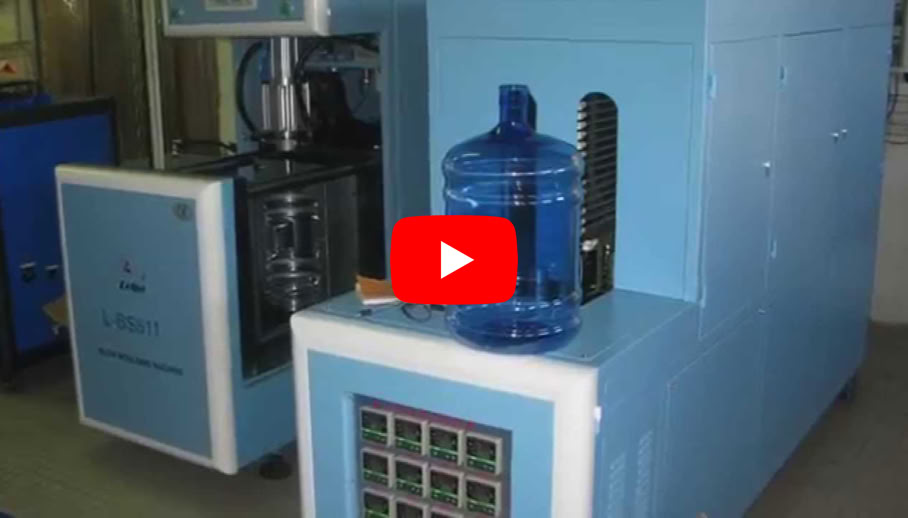

‍HODMETER can also supply and set up semi-automatic line like L-BS511 line from our partner LeBao.

‍

‍To work on your project or visit a production line operating, please contact us by by e-mail Envelope or WhatsApp What's App.

Logo Lebao
PET preform bottle 5 gallon

‍THREE WAYS TO TAKE THE LEAD

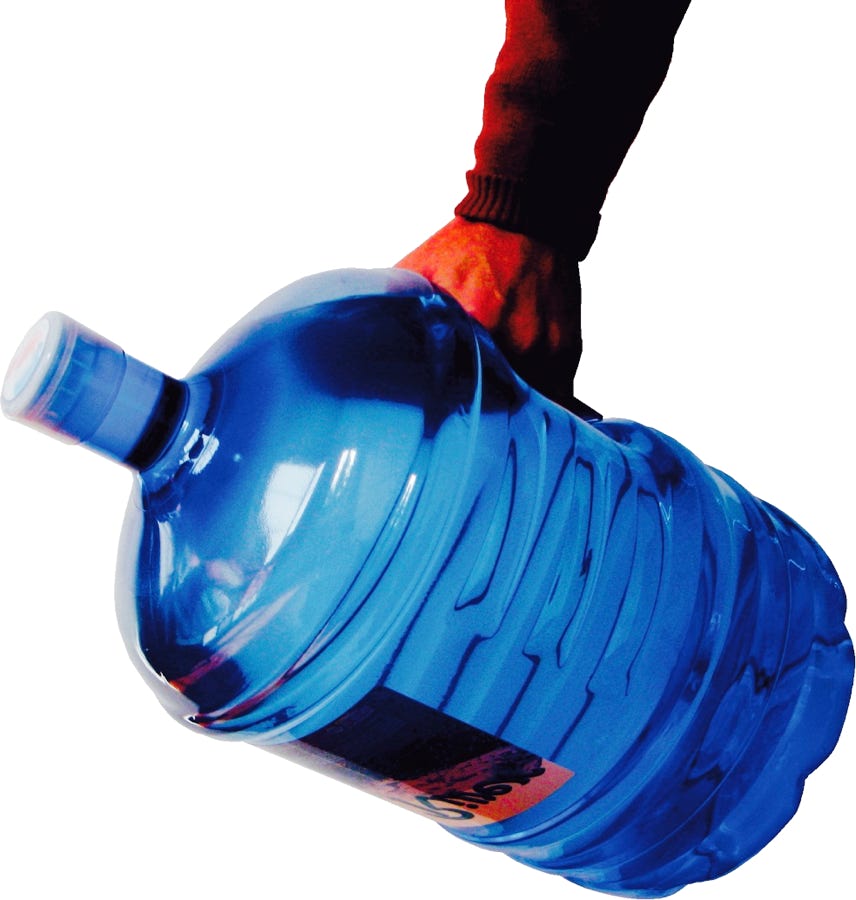

Handling a bottle is easier with a handle and HODMETER offers three options.

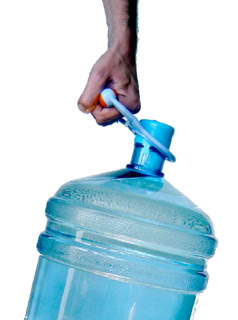

1. HODMETER provides a removable handle for the bottles that do not include this option.

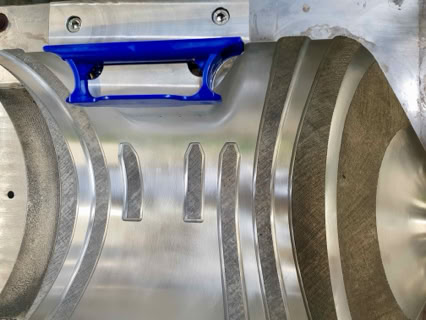

2. HODMETER injects a PET side handle for bottles. This handle is positioned in the mould before the preform is blown into a bottle.

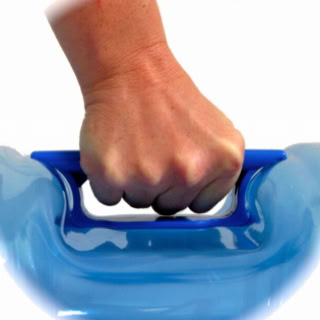

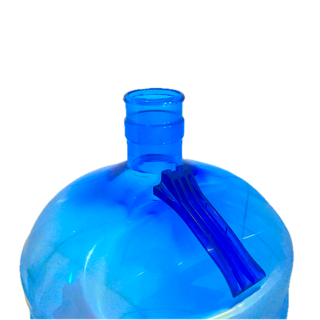

3. HODMETER injects a PET handle located on the shoulder of the bottle for:


  • Spontaneous handling (removing from racks, lifting from the floor, carrying, etc.)
  • Tenacity secured by the bottle-handle rail assembly
  • Improved distribution of PET across the bottle for greater durability
  • Handle installation after blowing for greater production efficiency


Click to see the models

under development

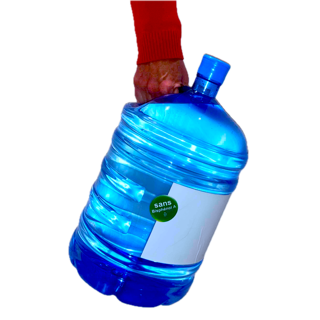

PET bottle

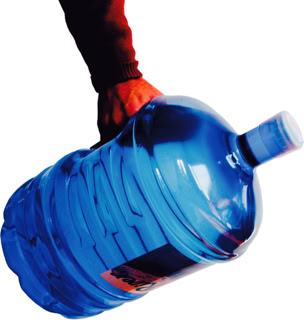

PET bottle
PET bottle

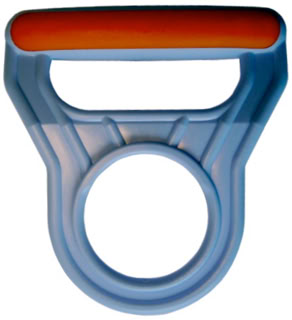

Handle for 5 gallon bottle


To understand how to proceed the handle, please contact us by  Envelope courriel or What's App WhatsApp.
